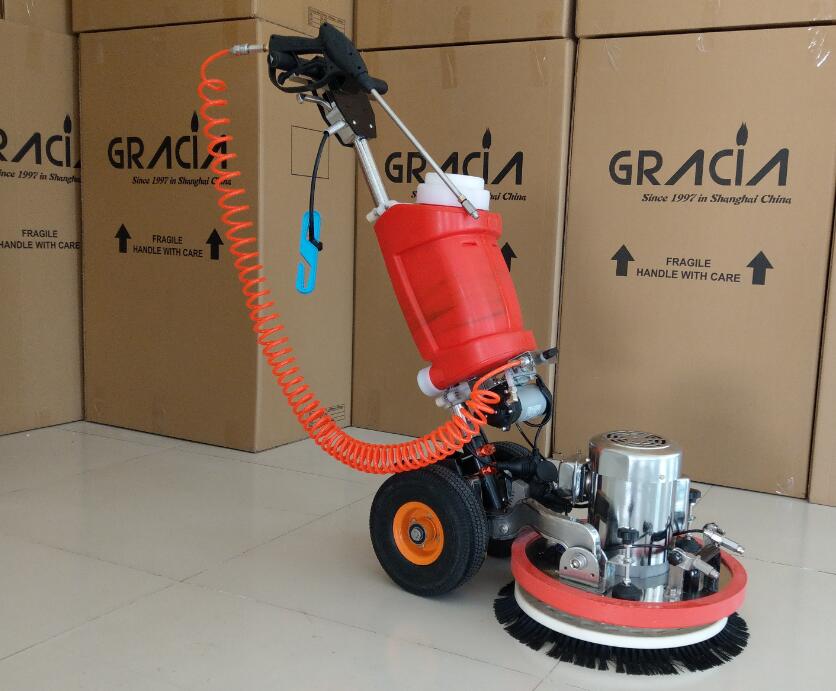

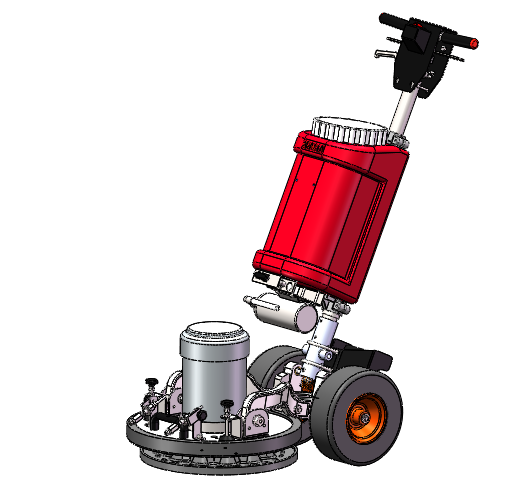

Orbital All-Surface Floor Machine

Oscalliating Pads Cleaning Machine

EVE's Orbital All-Surface Floor Machines use orbiting technology to combine two movements that thoroughly clean all surface types. They feature a very-low moisture(VLM) spray system to promote a clean and healthy environment by reducing mold and mildew. A weighted deck plates allows for deep scrubbing action. Thses versatile machines are extremely easy to use and can be used to scrub,sand and polish virtually all flooring types.

Featrues & Inculdes :

1. Little to no torque for smoothest operation.

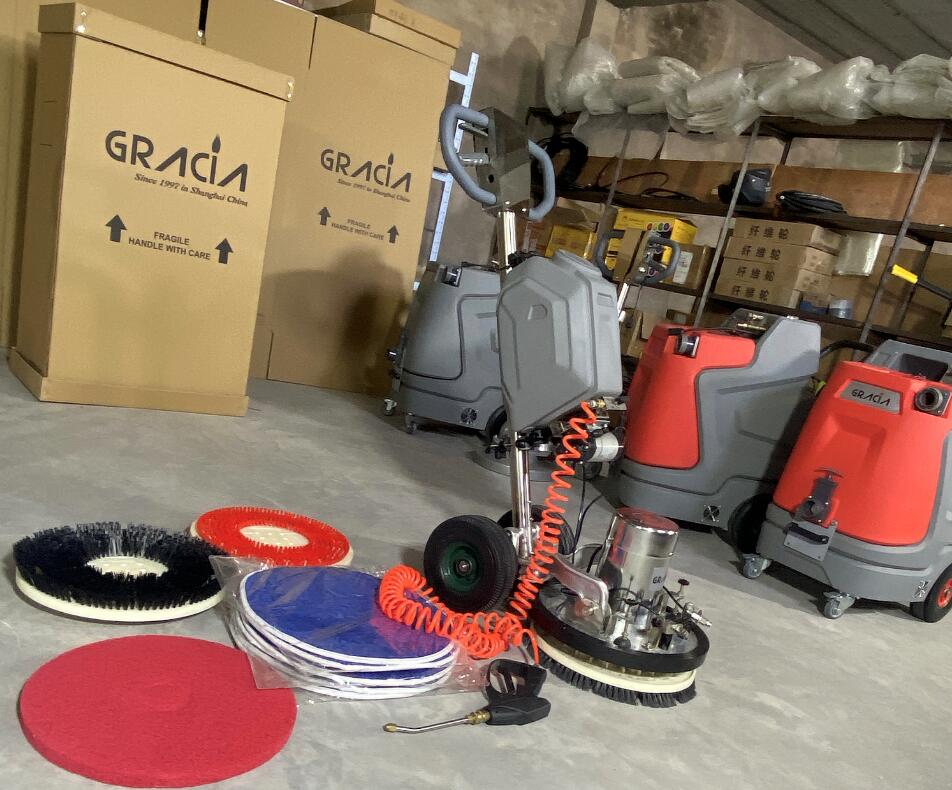

2. 17'' cleaning patch cleaning pad.(Red wire pad for carpet and polishing , black pad for grout & tile )

3. Very low moisture (VLM) system to conserve water.

4. Built-in 15L solution tank (colors options)

5. Polished aluminum torsion arms.

6. Durable stainless steel deck plate adds stabilizing weight for smooth operation and deep cleaning. Total weight of this machine : 75-80 kgs per set .

7. 10'' non-marking foam-filled wheels for easy maneuverability.

8. 1.5HP Japan motor that 1725 oscillations per minute.

9. Diaphragm spray pump with spray jet and spray gun system to supply 120PSI pressure water with 6LPM.

10. The ECO17-PRO is perfect for:

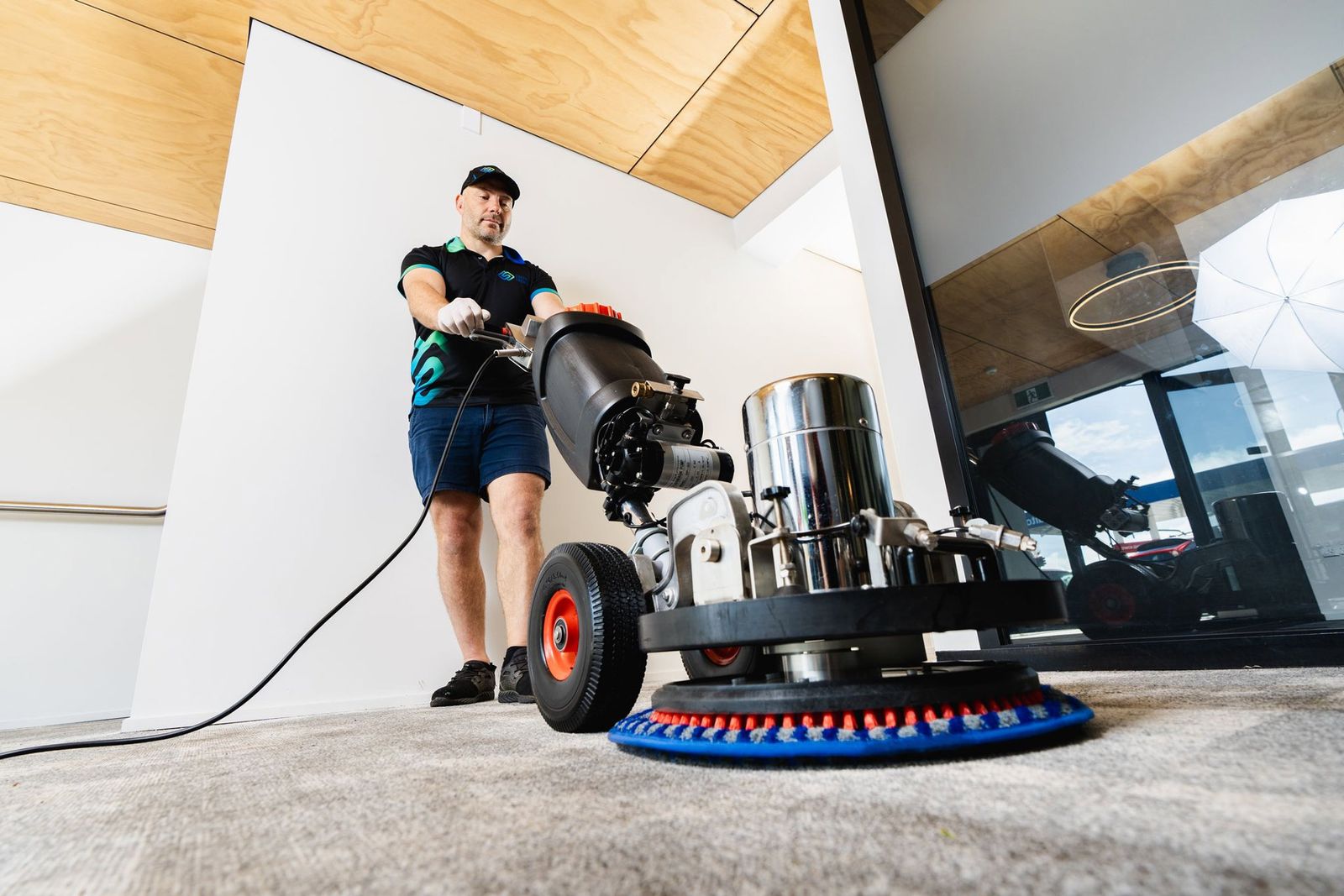

    -- Carpet encapsulation cleaning

    -- Tile & grout cleaning

    -- Sanding, scrubbing, and polishing concrete, stone, and vinyl flooring.

What is Orbital technology ?

ORBITING TECHNOLOGY is a unique system using an offset gear to produce two seperate movements to more effectively clean:

1. The head rotates around the center of the driver plate.

2. The offset gear produces a second random orbital movement that results in little to no torque for smooth operation.

Why only EVE make this kind of floor machine in China ?

EVE has more than ten patents in China's government to protect our technology and business secret for our international partners, here is our patents here in China as follows :

Orbital Encapsulation Technology is a modern carpet cleaning method that combines mechanical action with specialized cleaning solutions to clean and protect carpets. Here's how it works:

### Principle of Working:

1. **Encapsulation Solution**: A specialized cleaning solution, often referred to as an encapsulant, is applied to the carpet. This solution contains polymers and detergents designed to encapsulate (surround and trap) dirt and soil particles.

2. **Mechanical Agitation**: An orbital or oscillating brush machine is used to agitate the carpet fibers. The machine's brush or pad moves in an orbital (circular or elliptical) motion, which helps to work the encapsulant deep into the carpet pile.

3. **Encapsulation Process**: As the encapsulant is agitated into the carpet fibers, it surrounds and binds with dirt, dust, and other contaminants. The polymers in the solution crystallize around the soil particles, forming microscopic pods or capsules.

4. **Drying and Crystallization**: After the cleaning process, the carpet is left to dry. As it dries, the encapsulated dirt particles crystallize and become brittle.

5. **Vacuuming**: Once the carpet is completely dry, the crystallized pods are easily removed by vacuuming. The encapsulated dirt is lifted away, leaving the carpet clean and residue-free.

### Benefits of Orbital Encapsulation Technology:

- **Residue-Free Cleaning**: Unlike some traditional methods, encapsulation leaves minimal residue, reducing the risk of rapid re-soiling.

- **Quick Drying**: The process typically allows carpets to dry faster compared to steam cleaning or shampooing.

- **Soil Prevention**: The encapsulant can leave a protective layer on the carpet fibers, helping to repel future soiling.

- **Eco-Friendly**: Many encapsulants are environmentally friendly and require less water than traditional methods.

### Applications:

- **Commercial Settings**: Ideal for offices, hotels, and other high-traffic areas where quick drying and minimal downtime are essential.

- **Maintenance Cleaning**: Often used for routine maintenance to keep carpets looking fresh and extend their lifespan.

In summary, Orbital Encapsulation Technology leverages the combination of specialized cleaning solutions and mechanical agitation to effectively clean carpets while also providing a protective barrier against future dirt and stains.
