TRE Carpet Cleaning Package

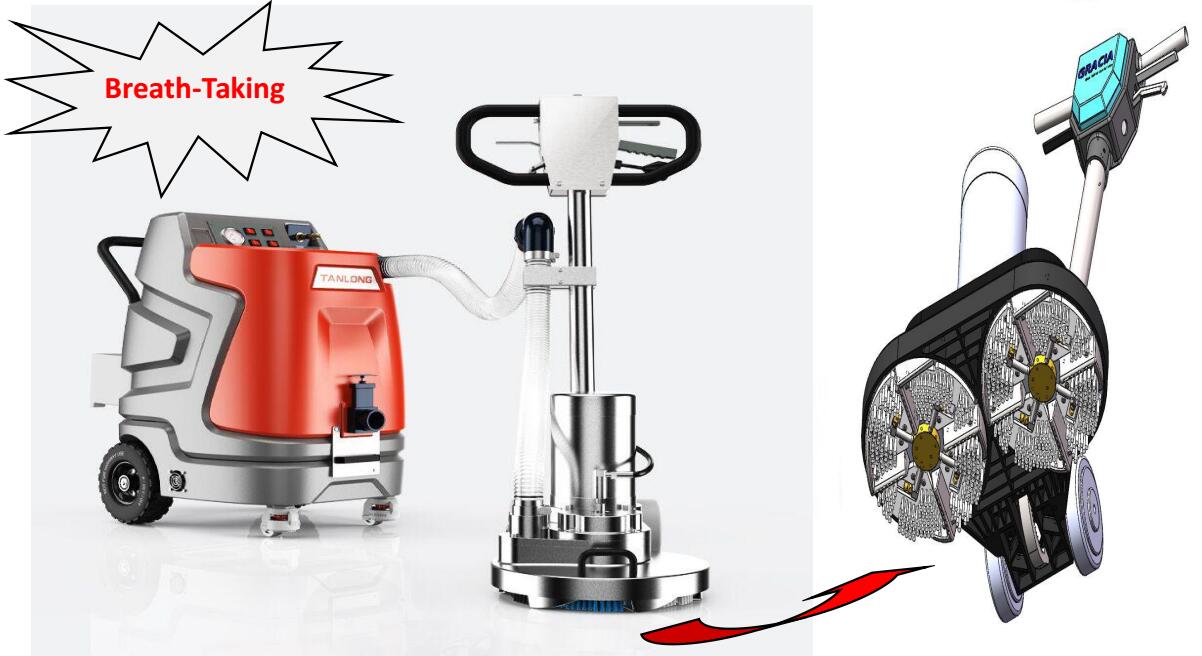

Carpet Cleaning System with TRE
This machine is the most advanced equipment in the carpet cleaning industry

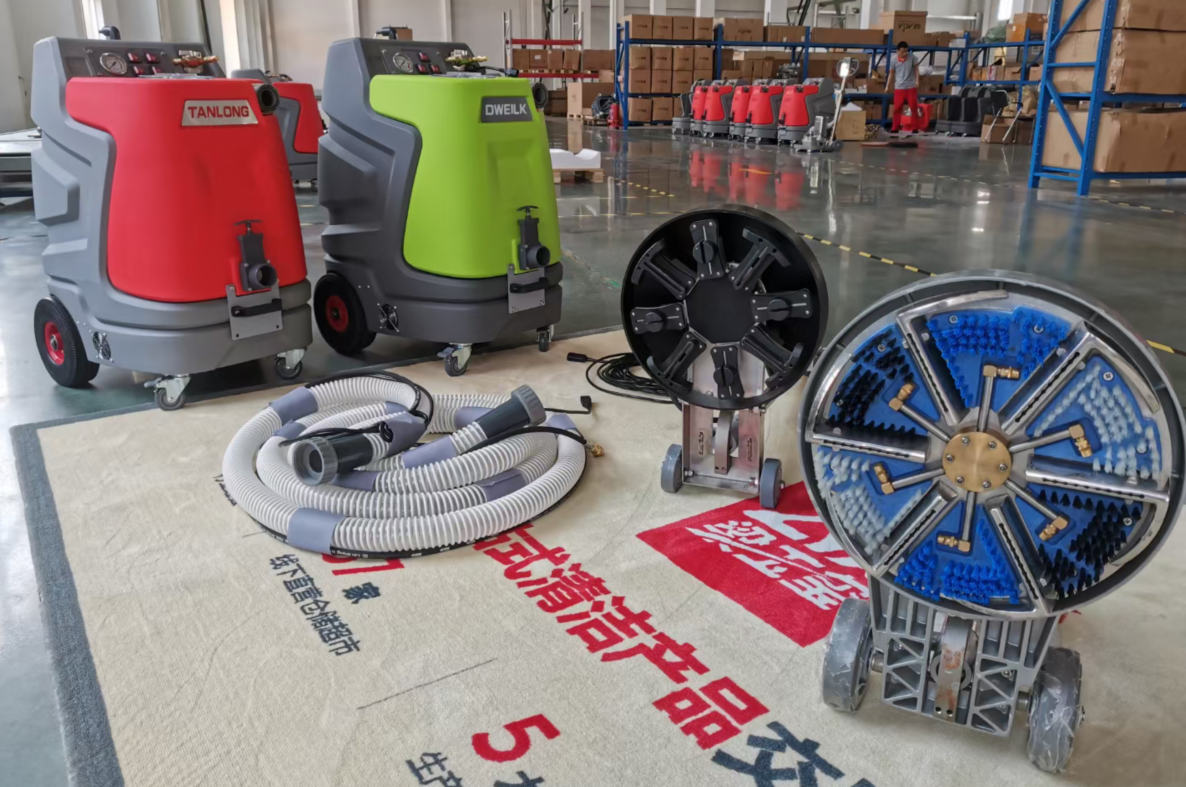

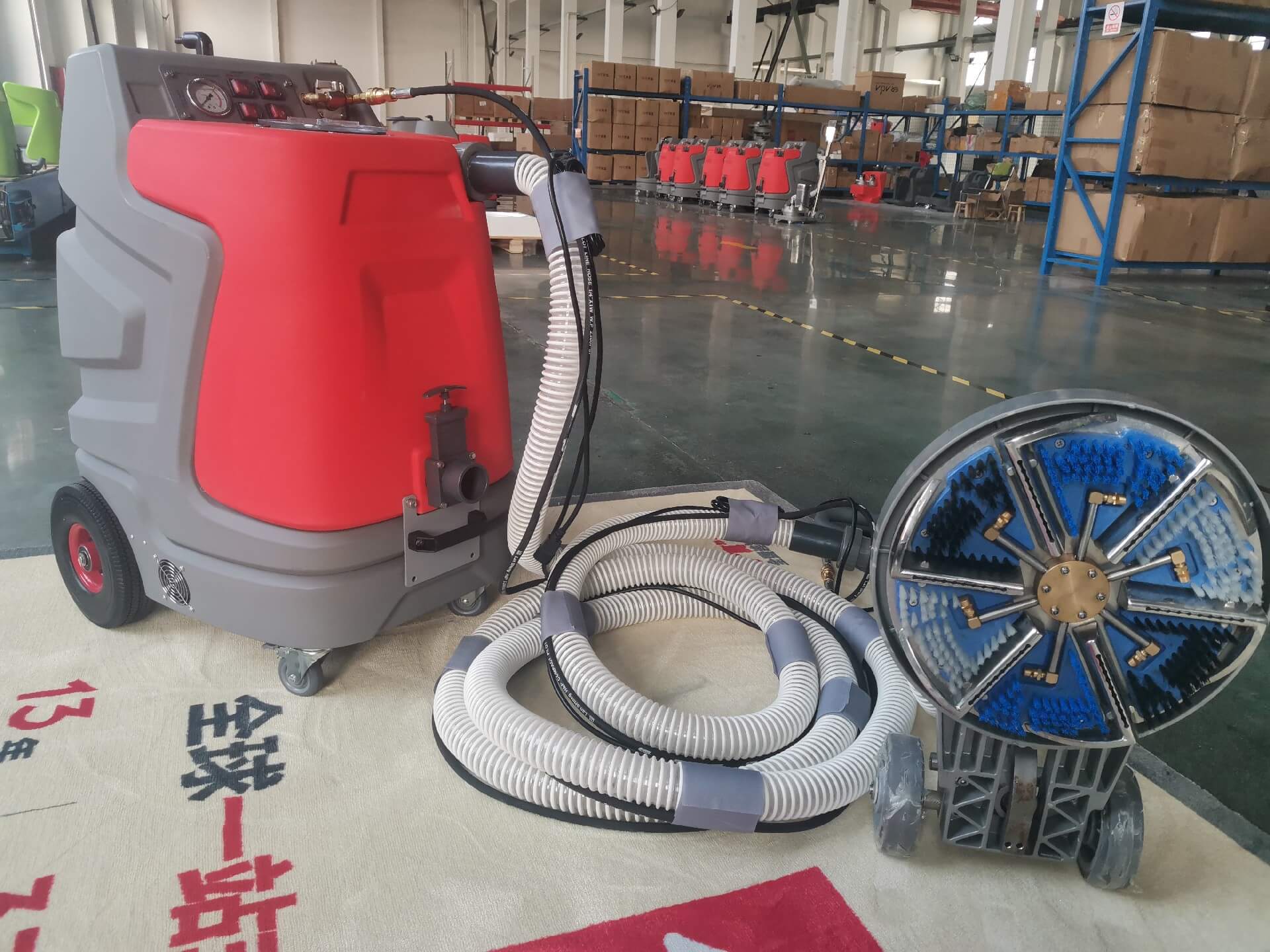

Including three parts:
| Powerful extractor | E45/38 : solution tank : 45L & recovery tank : 38L |
| Hose combo | 10 meters pressure hose / 10 meters vac hose / 10 meters power cords. |
| TRE cleaning head | 12inch & 15inch & 24inch (Optional as your required ) |

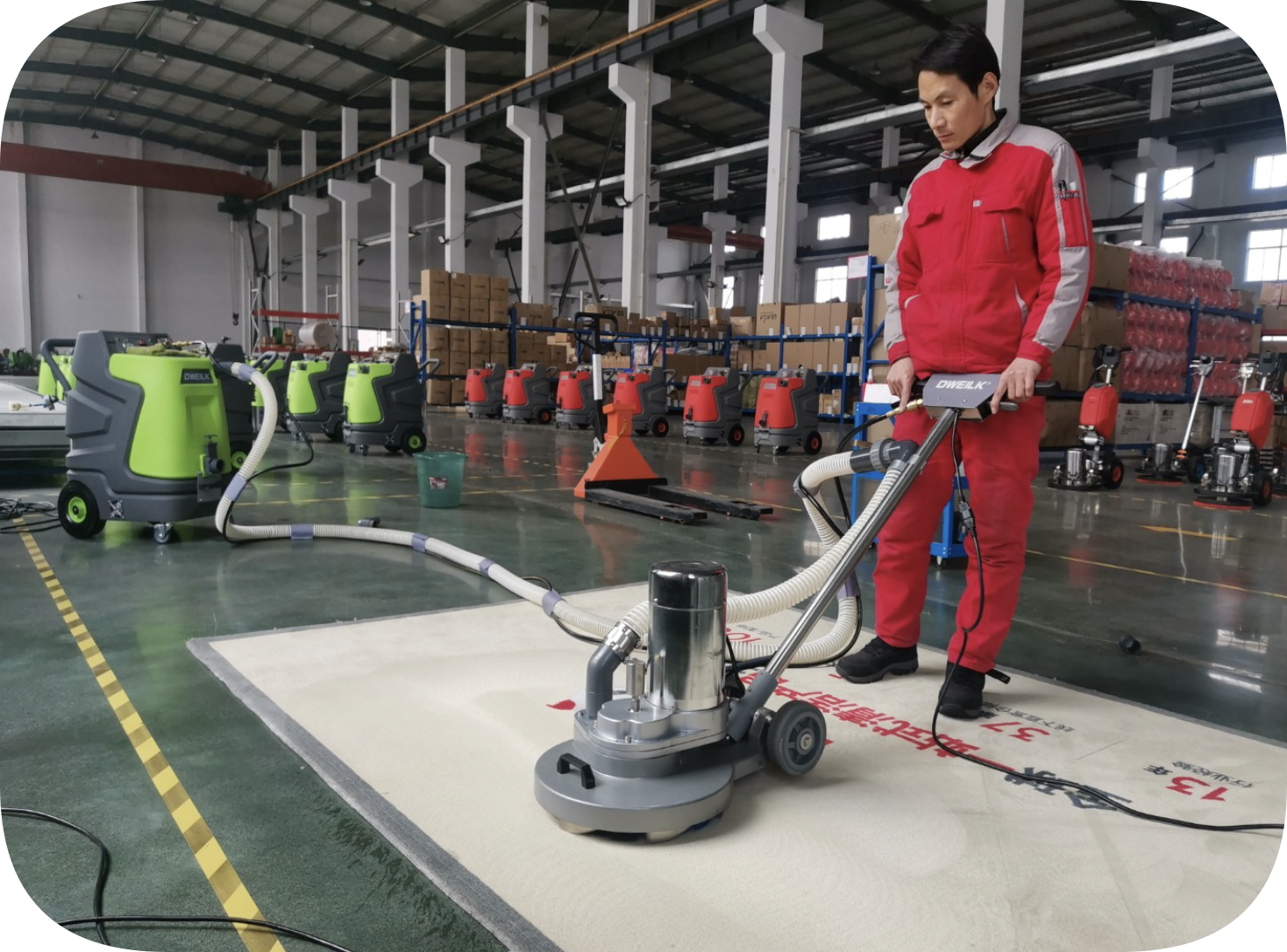

This total rotary extractor is specially designed for deeply carpet-cleaning, our engineers invent and design 4pcs - 6pcs - 8pcs patent wire-pads which contains 4pcs - 6pcs - 8pcs Hi-tempered & pressured spray jets with 0-500PSI inside the wire pads, and also installing 4pcs - 6pcs - 8pcs hi-power vacuum slots inside the wire-pads, when the machine works, the Hi-tempered & pressured spray jets will spray steam or vapor to the deep surface of the carpet to cause the dust or dirty things will get off the carpet, meanwhile the wire-pads will sweep them all , at the same time, the 4pcs - 6pcs - 8pcs hi-power vacuum slot will absorb all dusts into the recovery-tank .
This machine is the most-advanced design to clean carpet by more than 40% - 45% fast and deeply than traditional methods.
Features :

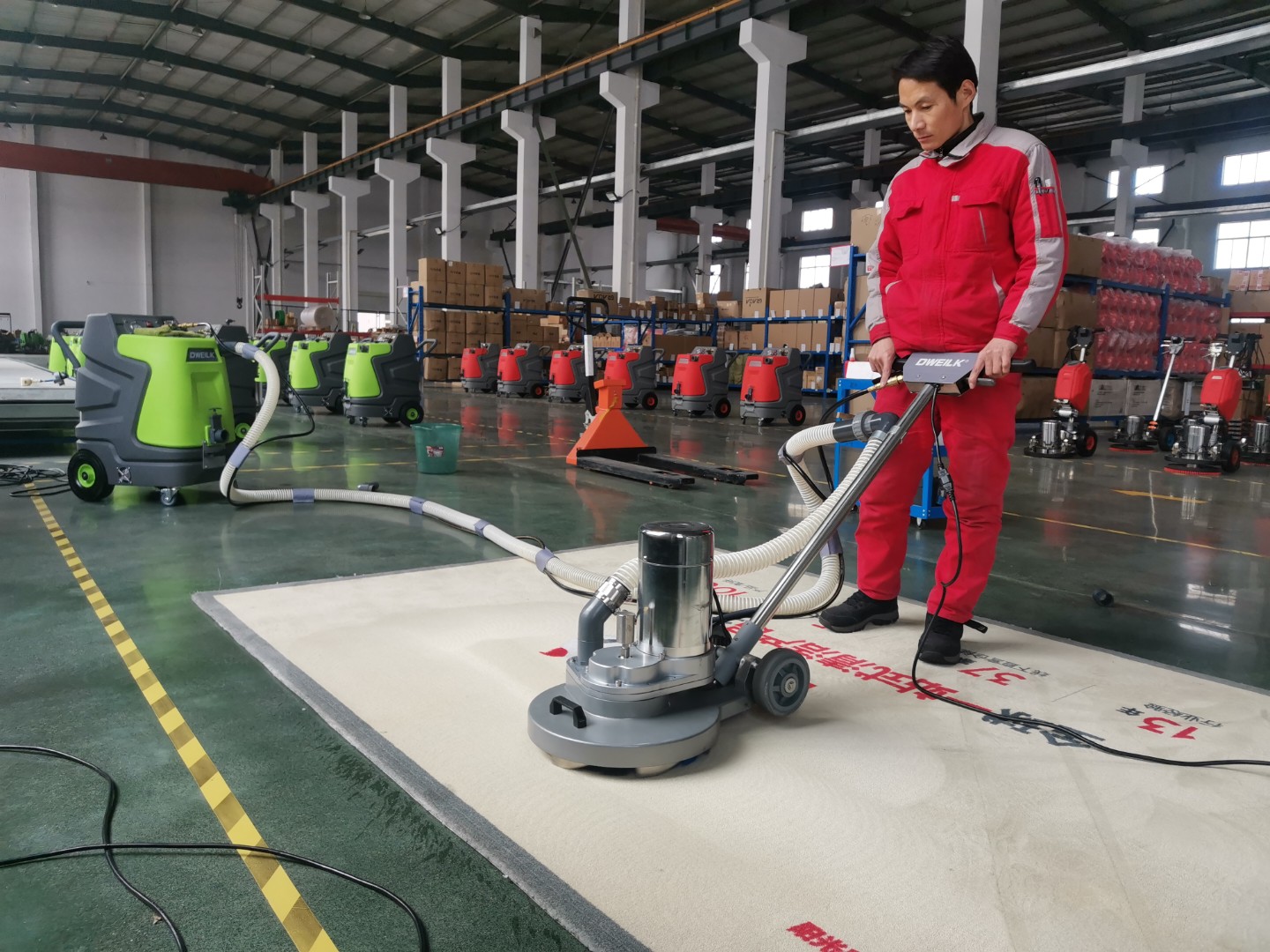

| Powerful extractor efficiency | One machine by one person can clean 400 - 1000 square meters per hour (Better than any others traditional competitors in the market) |
| Fast dry time | The recovery waste water rate can reach 95% to make the carpet dry time shorten less than 2 hours after cleaning-carpet |
| Deeply clean the carpet | From the bottom to the upper bristle will be clean totally |
| Industrial level | The special technology design take top position in this industry with called " breath-taking " design in China |
"Details make perfect " is our slogan , Here is the basic technology and specification for your reference :

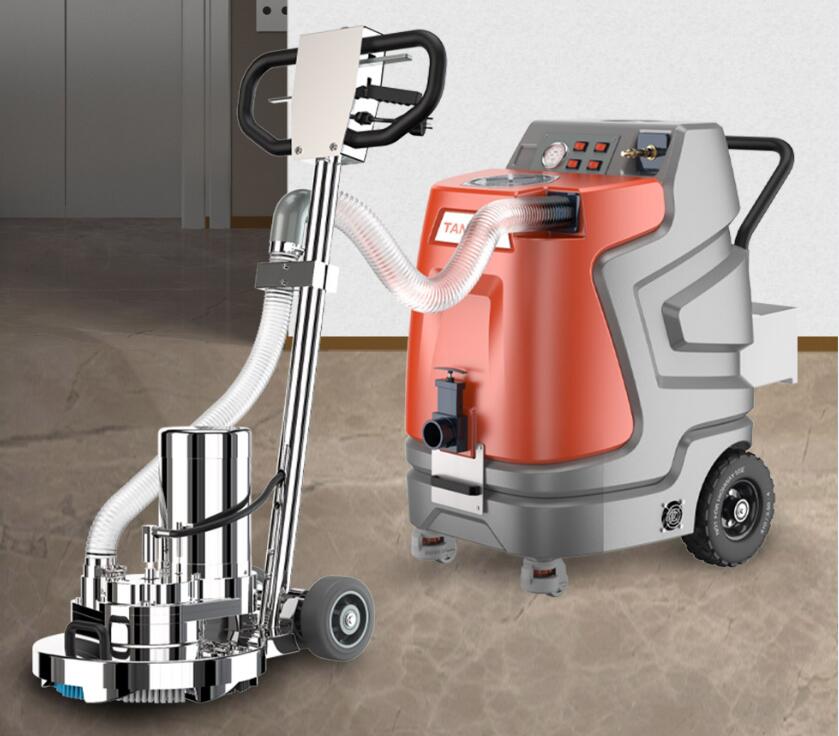

1. Powerful Extractor :
| Solution tank | 45L |
| Recovery tank | 38L |
| Pressure pump | 0 - 500psi (1200psi optional ) : brand : PUMPTEC |
| Vacuum motor | 2 x 1400w vac motor 3 - stage : Brand : AMETEK |
| In-line heating element | 2000W ( water can reach 40 - 60 degree to clean carpet ) |
| Water recovery rate | More than 90% |
| Spare parts | 10 inch wheels with chemical blacket |
Extra patent design & installment technology :
| Water auto inputing function | Conect water pipe to water tap to input water automatic with selfstop when the water tank is full, and the tap water can input itself when the solution tank is empty, do not need input water by manhand |
| Water off alarming system | The alarming system will work when the solution tank is empty |
| Vac auto-stop function | The vacuum motor will stop working when the recovert tank is full |
| Base tank air - cloding system | The air flowing system will work when the working space is hot temperature |

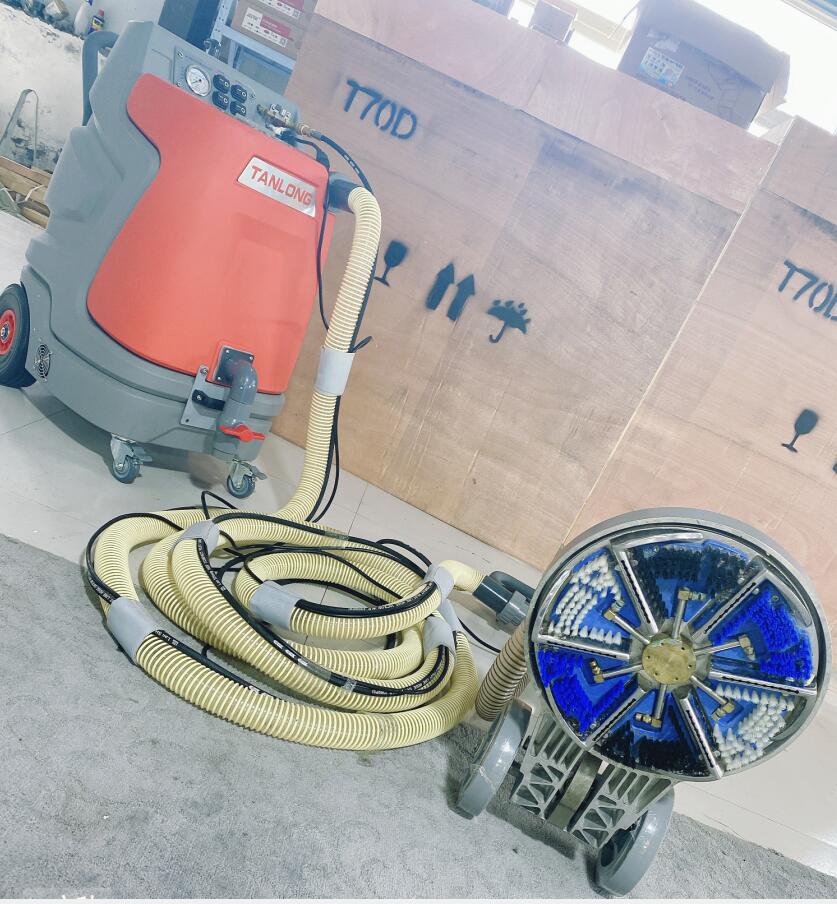

2. Hose combo :
- 10 meters vac hose
- 10 meters spray hose

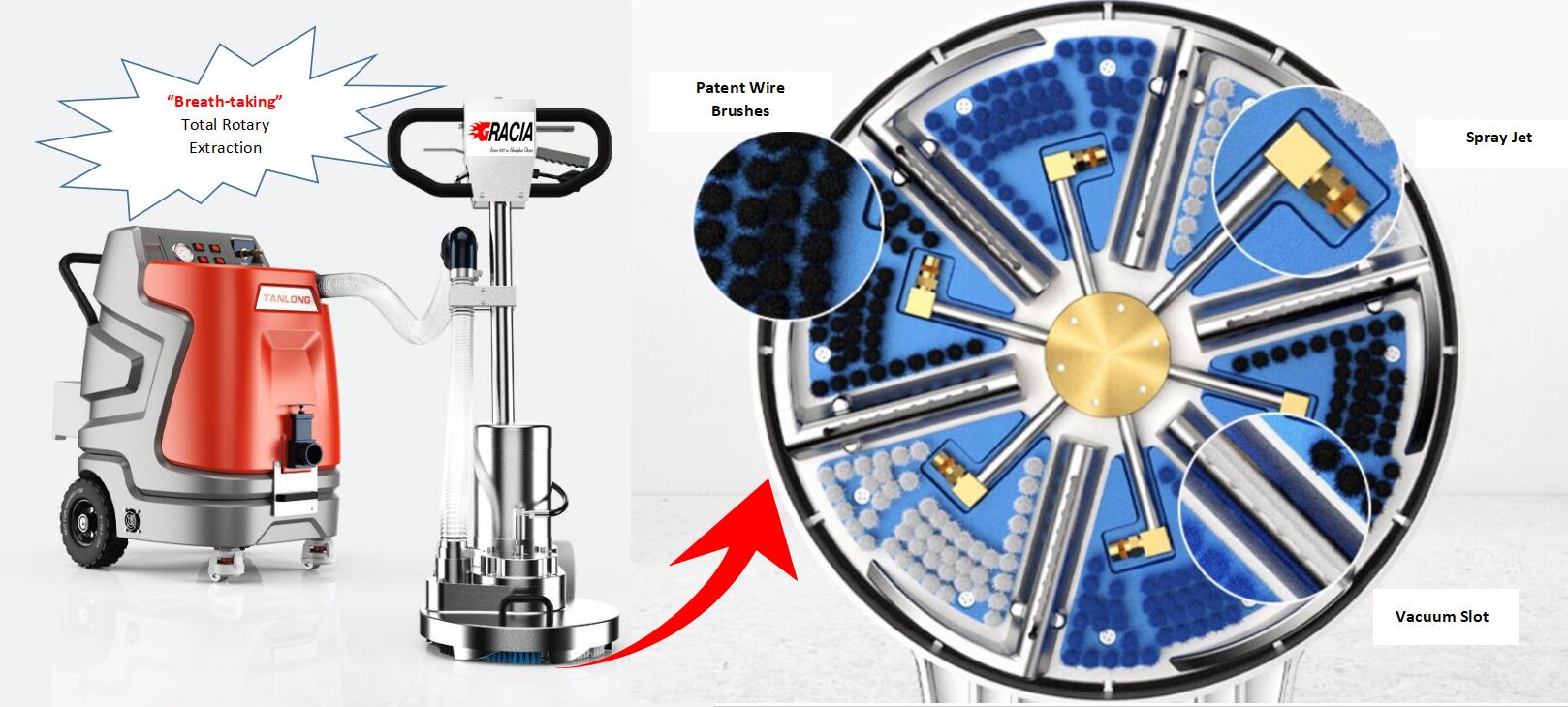

3. TRE cleaning head(the peak position in carpet cleaning tech , called ； KING in industry ):
| TRE cleaning head | 12inch & 15inch & 24inch TRE cleaning head |
| RPM : round per minute | 160-180RPM adjustable |
| Power motor | 1.5HP with 1250W by TM motor from Japan |
| Spray jet | 6 sets stainless steel 304 spray jets |
| Vacuum slots | 6 sets stinless steel 304 vacuum slots |
| Brushes | Preinstalled 6 sets patent plate wire brushes |
| Working efficiency | 300 - 500 square meters per hour for deeply cleaning carpet |

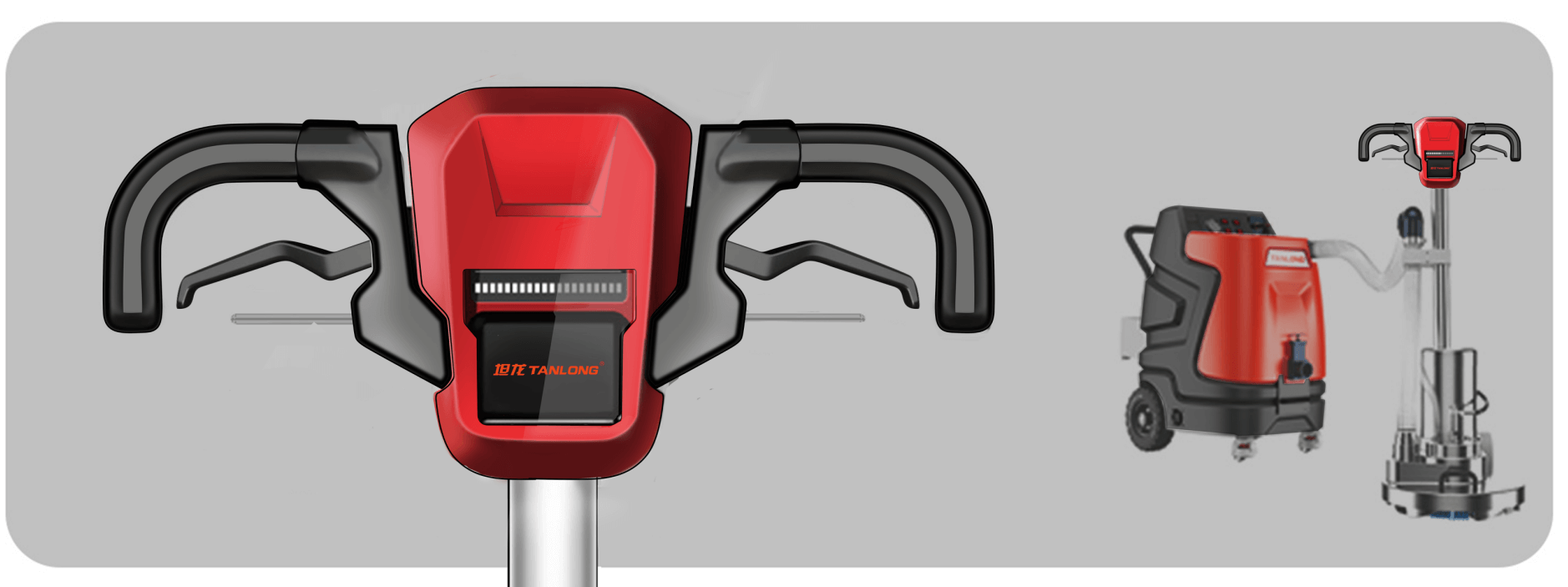

| Special patent design | All cover and handler are ss 304 instead of plastic |
4. wands :
| Match two wands | 1 set 4inch & 1 set 12inch ss304 traditional wands |
| Wooden carton packing | 1500mm x 1100mm x 1400mm |
| Gross weight | 190-200 kgs |
ATTN:
In Solution tank, we have Water - off alarming system : When the water spray out less than 5L , the alarming system will work to inform you to input the water. And this system will cut off the spray function to protect the spray pump .
In Recovery tank , we have self-cut system, when the recovery tank is full with the recovery water, this system will work to self-cut the vacuum function to stop vacuum.
The the base tank, we have heating-out fans to keep the working system cold and healthy.
This is our psecial design .
Total Rotary Extraction (TRE) technology is an advanced carpet cleaning method that combines rotary brushing with powerful extraction to deliver a deep and thorough clean. This technology is particularly effective for commercial and heavily soiled carpets. Here’s a detailed look at its functions and benefits:
Functions of TRE Technology:
1. Rotary Brushing:
| Agitation | The TRE machine uses a rotary brush to agitate the carpet fibers. This action helps to loosen embedded dirt, dust, and stains from deep within the carpet pile. |
| Enhanced Cleaning Solution Penetration | The rotary motion ensures that the cleaning solution is worked deeply into the carpet fibers, improving its effectiveness. |
2. High-Pressure Spray:
| Solution Application | The machine sprays a cleaning solution onto the carpet at high pressure. This helps to break down tough stains and soils. |
| Even Distribution | The high-pressure spray ensures that the cleaning solution is evenly distributed across the carpet surface. |
3. Powerful Extraction:
| Vacuum Suction | After the cleaning solution has been applied and agitated, the TRE machine uses powerful vacuum suction to extract the solution along with the dislodged dirt and debris. |
| Moisture Removal | The strong extraction capability ensures that most of the moisture is removed from the carpet, reducing drying time and preventing mold and mildew growth. |
4. Deep Cleaning:
| Penetration: | The combination of rotary brushing and high-pressure spray allows the TRE technology to penetrate deep into the carpet fibers, providing a thorough clean that reaches below the surface. |
| Soil Removal | The powerful extraction removes not only surface dirt but also deeply embedded soils, leaving the carpet cleaner and fresher. |
Benefits of TRE Technology:
1. Efficiency:
| Time-Saving | The combination of brushing, spraying, and extraction in a single pass makes the TRE process highly efficient, reducing the time required for cleaning. |
| Effective Cleaning | The deep cleaning action ensures that even the most stubborn stains and soils are effectively removed. |
2. Improved Carpet Appearance:
| Restoration | TRE technology can restore the appearance of heavily soiled and worn carpets, making them look newer and more vibrant. |
| Odor Removal | The thorough cleaning process also helps to remove odors caused by dirt, spills, and bacteria. |
3. Reduced Downtime:
| Quick Drying | The powerful extraction minimizes moisture left in the carpet, leading to faster drying times and reduced downtime for commercial spaces. |
| Immediate Use | In many cases, carpets cleaned with TRE technology can be used almost immediately after cleaning. |
4. Versatility:
| Various Carpets | TRE technology is suitable for a wide range of carpet types, including high-pile, low-pile, and commercial carpets. |
| Different Soils | It is effective against various types of soils, including grease, oil, and organic stains. |
Steps in the TRE Cleaning Process:
1. Pre-Vacuuming:
- Debris Removal: The carpet is vacuumed to remove loose dirt and debris before the TRE process begins.
2. Pre-Treatment:
- Spot Treatment: Stains and heavily soiled areas are pre-treated with specialized cleaning agents.
3. TRE Cleaning:
- Solution Application: The cleaning solution is sprayed onto the carpet.
- Rotary Brushing: The rotary brush agitates the carpet fibers to loosen dirt and stains.
- Extraction: The machine extracts the cleaning solution along with dirt and debris.
4. Post-Cleaning Inspection:
- Quality Check: The cleaned carpet is inspected to ensure all stains and soils have been removed.
- Client Walkthrough: A final walkthrough with the client to ensure satisfaction.
Summary:
Total Rotary Extraction (TRE) technology is a highly effective carpet cleaning method that combines rotary brushing, high-pressure spraying, and powerful extraction to deliver a deep and thorough clean. It is particularly beneficial for commercial and heavily soiled carpets, offering efficiency, improved appearance, reduced downtime, and versatility.
Carpet Cleaning System with TRE

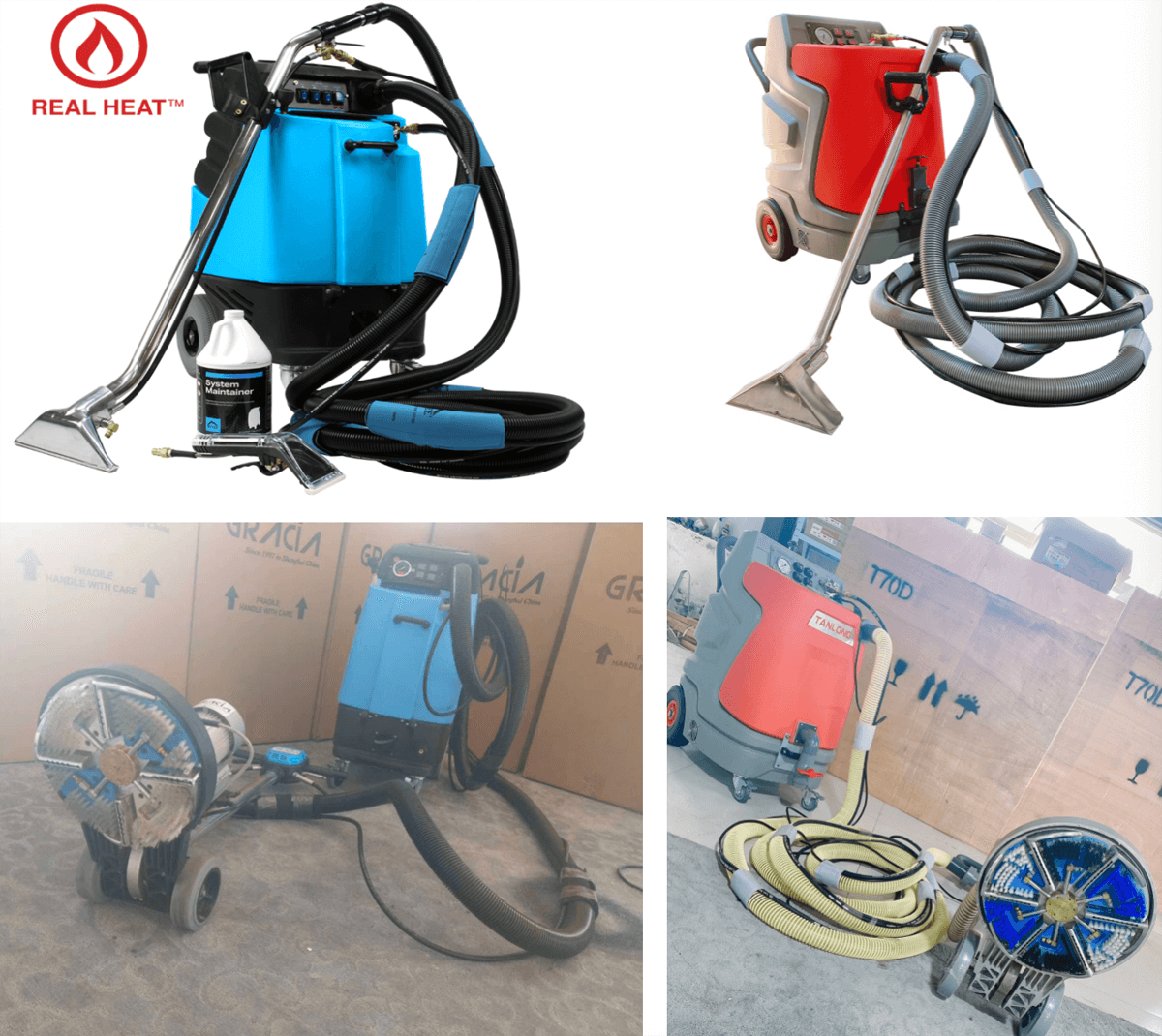

| Model : TRE-S15A | Model : TRE-S15B | Model : TRE-S24 |
| E45/38 powerful extractor | E45/38 powerful extractor | E45/38 powerful extractor |
| 10 meters combo hose | 10 meters combo hose | 15 meters combo hose |
| Total Rotary Extraction cleaning head with 15'' without pre-installed brushes | Total Rotary Extraction cleaning head with 15'' with 6 pcs pre-installed brushes | Total Rotary Extraction cleaning head with 24'' with 8 pcs pre-installed brushes |
| Extractor color : blue & red & gray & green | Extractor color : blue & red & gray & green | Extractor color : blue & red & gray & green |
