Traditional Carpet Cleaning Package

The EVE  line of carpet extractors are powerful, portable, user-friendly and afford- able. They have features that set them apart from the competition. Made at our China-Shanghai plant, our undergo extensive factory testing to ensure that they meet rigorous quality standards.

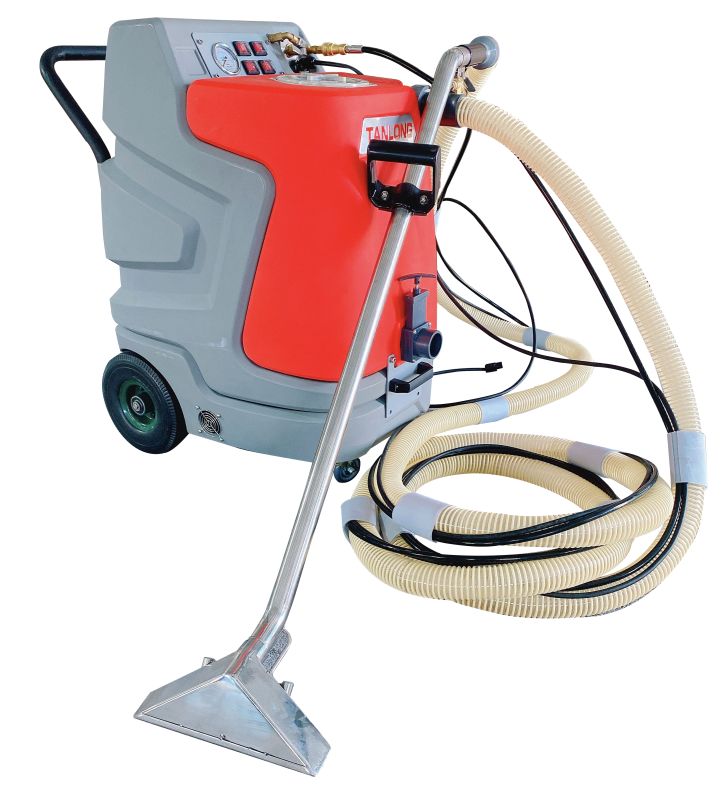

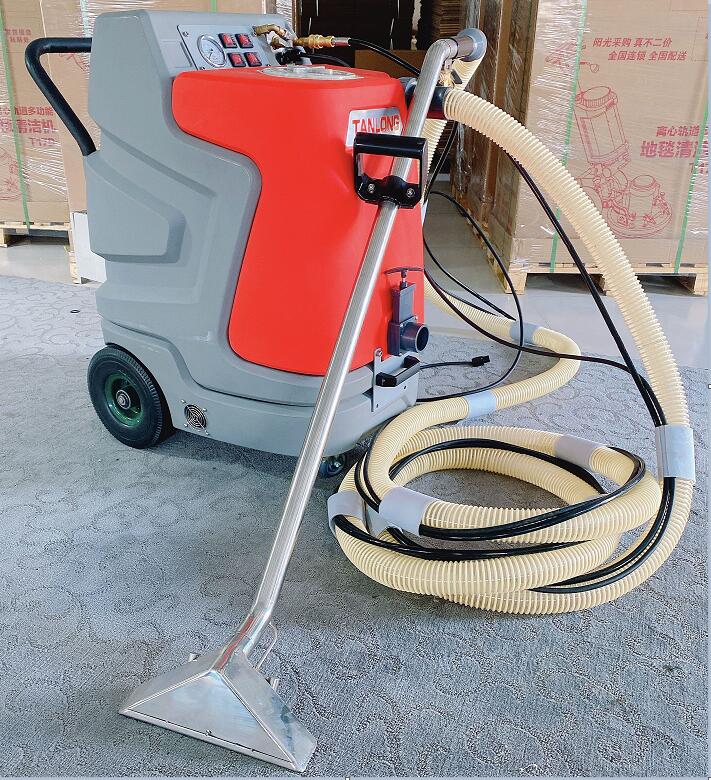

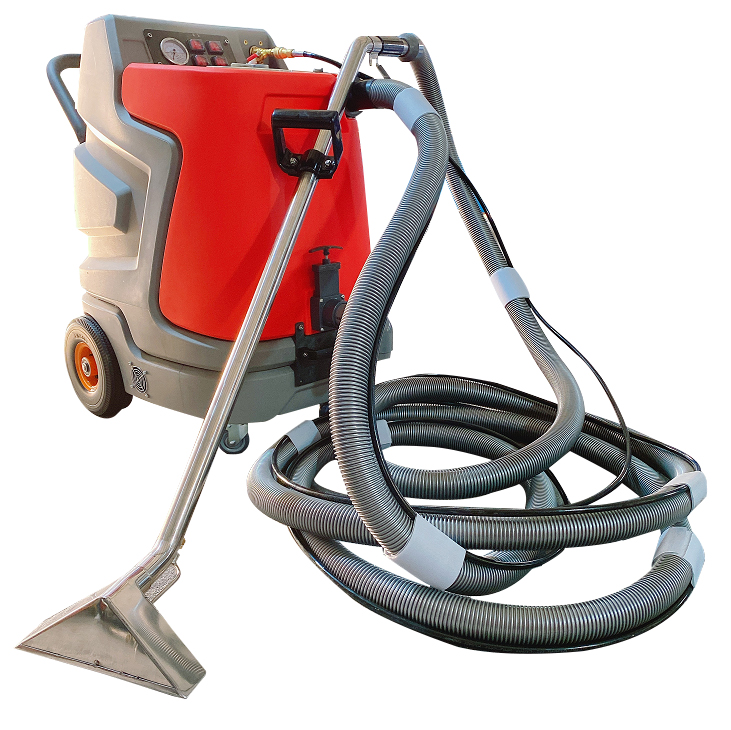

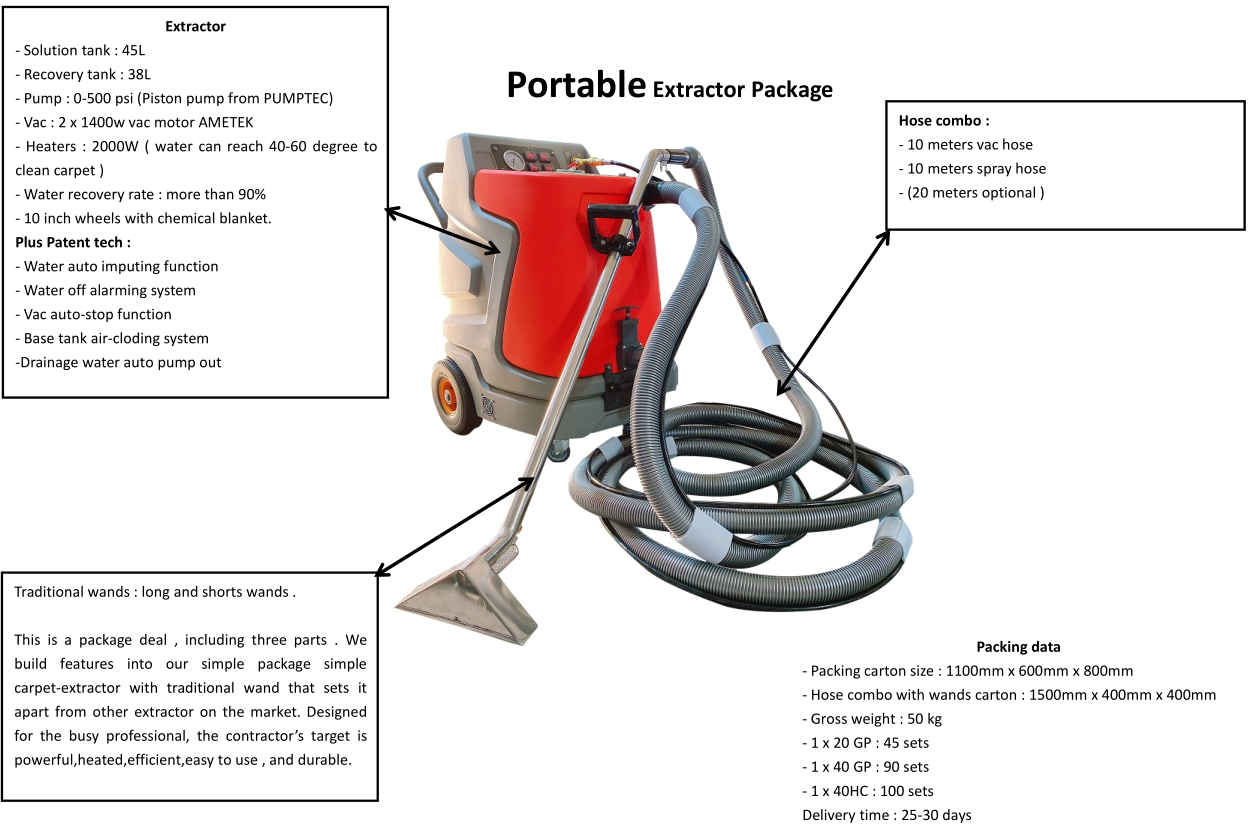

Model : PEP *Portable Extractor package

- 160-200PSI : 7.5meters hose combo

- 0-500PSI :     10 meters hose combo

- 0-1200PSI :    20 meters hose combo

Includes:

1. Powerful extractor:

* Working pressure :   160PSI / 500PSI / 1200PSI optional

                                     Brand : Pump Tec

* In-line Heaters :        2000W(option)

* Vacumm :                  2 sets 1400W vacuum motor 3-stages  : AMETEK BRAND

* Solution tank :           45L

* Recovery tank :         38L

* Color and design :     EVE BRAND

2. Combo hose (connection pipe )

* Vacumm pipe :      7.5 meters - 10 meters - 20 meters length

* Pressure pipe :      7.5 meters  - 10 meters - 20 meters length

* Design connection bar hose

3. Traditional 12'' or 14'' stainless steel 304 carpet wand (more different wands optional )

Features :

 * Carpet cleaning efficiency : 100-150 square meters per hour.

 * Water recovery rate : more than 85%-95%

 * Carpet dry time : less than 2 hours

ATTN:

1. In Solution tank, we have Water-off alarming system : When the water spray out less than 5L , the alarming system will work to inform you to input the water. And this system will cut off the spray function to protect the spray pump .

2. In Recovery tank , we have self-cut system, when the recovery tank is full with the recovery water, this system will work to self-cut the vacuum function to stop vacuum.

3. The the base tank, we have heating-out fans to keep the working system cold and healthy.

This is our psecial design .

A portable extractor is a crucial piece of equipment in the carpet cleaning process, especially for commercial and residential services. Its primary function is to deep clean carpets by injecting cleaning solution and then extracting dirt, debris, and moisture. Here’s a detailed look at its functions:

### Key Functions of a Portable Extractor:

1. **Injection of Cleaning Solution**:

   - **Spraying**: The portable extractor sprays a mixture of hot water and cleaning solution onto the carpet fibers. This helps to loosen dirt, stains, and embedded debris.

2. **Agitation (Optional)**:

   - **Built-in Brushes**: Some portable extractors come with built-in brushes or agitators that help to scrub the carpet fibers, enhancing the cleaning solution's effectiveness in breaking down dirt and stains.

3. **Extraction of Dirt and Moisture**:

   - **Vacuum Power**: The extractor uses strong vacuum suction to remove the injected cleaning solution along with dissolved dirt, stains, and debris from the carpet fibers.

   - **Moisture Removal**: Efficient extraction of moisture is crucial to prevent over-wetting the carpet, which can lead to mold and mildew growth.

4. **Deep Cleaning**:

   - **Penetration**: The high-pressure spray and strong suction allow the extractor to penetrate deep into the carpet pile, removing dirt and allergens that regular vacuuming cannot reach.

5. **Versatility**:

   - **Portability**: Being portable, these machines can be easily transported to different locations, making them ideal for both residential and commercial settings.

   - **Various Surfaces**: Portable extractors can be used on a variety of surfaces, including carpets, upholstery, and rugs.

### Steps in Using a Portable Extractor:

1. **Preparation**:

   - **Pre-Vacuuming**: The carpet is vacuumed to remove loose dirt and debris.

   - **Pre-Treatment**: Stains and heavily soiled areas are treated with appropriate cleaning agents.

2. **Cleaning Solution Application**:

   - **Solution Mixing**: The cleaning solution is mixed with hot water in the extractor's tank.

   - **Spraying**: The solution is sprayed onto the carpet using the extractor's spray wand.

3. **Agitation**:

   - **Brushing**: If the extractor has built-in brushes, they are used to agitate the carpet fibers and work the cleaning solution into the pile.

4. **Extraction**:

   - **Suction**: The extractor's vacuum suction removes the cleaning solution along with dirt and debris from the carpet.

   - **Moisture Control**: The extractor ensures that most of the moisture is removed, speeding up the drying process.

5. **Drying**:

   - **Air Movement**: Fans or air movers may be used to further accelerate the drying process.

### Benefits of Using a Portable Extractor:

- **Effective Cleaning**: Provides a deep clean that removes embedded dirt and allergens.

- **Quick Drying**: Efficient moisture extraction reduces drying time.

- **Convenience**: Portable and easy to maneuver, making it suitable for various cleaning tasks.

- **Versatility**: Can be used on different types of carpets and upholstery.

In summary, a portable extractor is an essential tool in the carpet cleaning process, offering deep cleaning, efficient moisture removal, and versatility, making it ideal for both residential and commercial applications.
